| GENERAL DESCRIPTION |
|

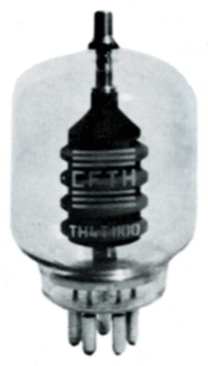

The TH 4T 1100 is a radiation cooled tetrode used as an oscillator, AF or RF amplifier operating up to 75 MHz at full load. Its high thermal inertia anode can dissipate up to 800 W. |
| TECHNICAL SPECIFICATIONS | |
| ELECTRICAL | |
| Type of cathode | Thoriated tungsten |
| Heating | Direct |
| Filament voltage | 7.5 V |
| Filament current | 21 A |
| Amplification factor | 7 |
| Transconductance | 10 mA/V |
| MECHANICAL | |
| Base | Special |
| Operating position | Vertical, anode connector up or down |
| Anode cooling | Radiation cooled |
| Glass bulb maximum temperature | 250 °C |
| Electrode terminals maximum temperature | 175 °C |
| Glass bulb cooling | Natural convection |
| Specifications may change without notice | |
