Ths external-anode tube is especially suited for Class AB1 linear rf amplifier service, but will also provide excellent perfomance in Class AB2, Class B, and Class C service.
| GENERAL DESCRIPTION |
|

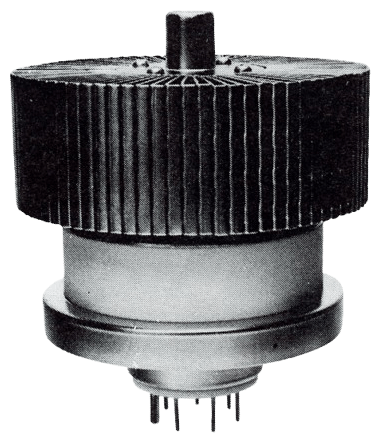

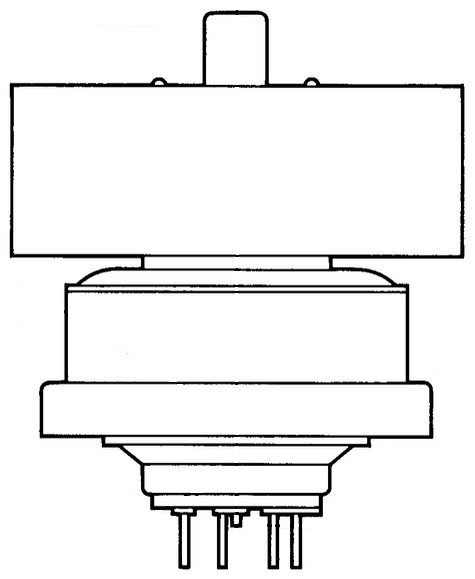

The 8295A / PL-172 is a ceramic/metal, forced-air cooled, radial beam pentode with a rated maximum plate dissipation of 1000 watts. It is capable of high power gain and excellent efficiency at relatively low plate voltage. The 8295A is a direct replacement for the 8295. Ths external-anode tube is especially suited for Class AB1 linear rf amplifier service, but will also provide excellent perfomance in Class AB2, Class B, and Class C service. |
|
| TECHNICAL SPECIFICATIONS | |
| Plate Dissipation (Max.) | 1000 watts |
| Screen Dissipation (Max.) | 30 watts |
| Grid Dissipation (Max.) | 5 watts |
| Frequency for Max. Ratings (CW) | 30 MHz |
| Cooling | Forced Air |
| Cathode Voltage Current |
Oxide-coated Unipotential 6.0 volts 8.2 amperes |
| Capacitances (Grounded Cathode Connection) Input Output Feed-through |
40.0 pF 18.5 pF .09 pF |
| Base | 7-Pin Special |
| Recommended Air-System Socket | SK-184 |
| Maximum Seal & Anode Core Temperature | 250°C |
| Maximum Length | 5.05 in; 128 mm |
| Maximum Diameter | 4.03 in; 102 mm |
| Weight (approximate) | 2.8 lb; 1.27 kg |
| Operating Position | Any |
| Specifications may change without notice | |
| THIS TUBE IS USED IN THE FOLLOWING SHORTWAVE BROADCAST TRANSMITTERS | ||
| Manufacturer | Transmitter specifications | Power in kW |
| Technical Materiel Corporation | GPT-10K | 10 |
| GPT-40K | 40 | |
| THIS TUBE IS AVAILABLE FROM | ||
| Manufacturer | Rebuilder | Distributor |
| Richardson Electronics | ||
