In most cases, the 8236 will function as a high dissipation, direct plug-in replacement for the 6DQ5.
| GENERAL DESCRIPTION |
|

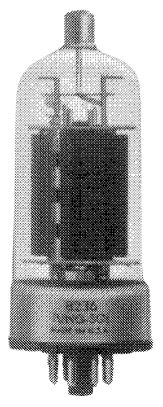

The 8236 is an all service beam power pentode particularly suited for use in horizontal deflection circuits and as an R-F power amplifier up to 30 megacycles. Its carbon anode and hard glass bulb permit continuous operation at 50-watt plate dissipation. In most cases, the 8236 will function as a high dissipation, direct plug-in replacement for the 6DQ5. |
|
| TECHNICAL SPECIFICATIONS | |
| ELECTRICAL | |
| Heater Voltage | 6.3 ± 10% |
| Heater Current - Ef = 6.3 Volts | 2.5 Amperes |
| Transconductance | 10,500 Micromhos |
| Mu, Grid No. 2 to Grid No. 1 | 3.3 |
| Direct Interelectrode Capacitances Grid No. 1 to Plate Input Output |
0.5 Picofarad 23 Picofarads 11 Picofarads |

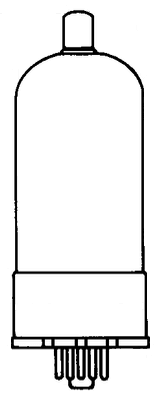

| MECHANICAL | |
| Mounting Position | Any |
| Bulb | JEDEC T-12 |
| Base | Large wafer octal with sleeve, JETEC No. B8-98 |
| Cap | JEDEC C1-1 (Small) |
| Maximum Net Weight | 3.75 ounces |
| Specifications may change without notice | |
| THIS TUBE IS USED IN THE FOLLOWING SHORTWAVE BROADCAST TRANSMITTERS | ||
| Manufacturer | Transmitter specifications | Power in kW |
| Bauer | FB5V | 5 |
