| GENERAL DESCRIPTION |
 |

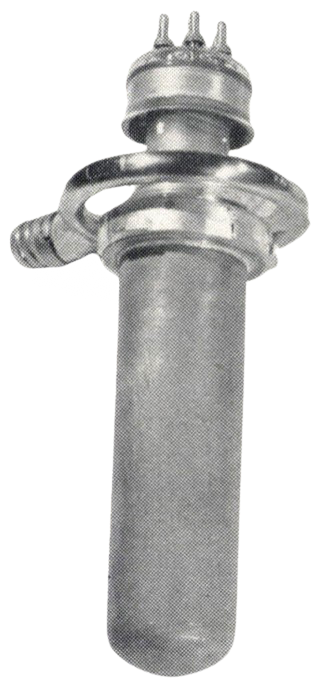

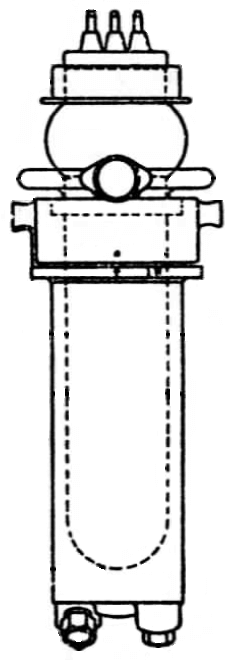

The 6077 / TBW12/100 is a three-electrode water-cooled tube designed for use as a radio-frequency power amplifier, oscillator and modulator. The anode is capable of dissipating 50 kilowatts in class C telegraphy during Continuous Commercial Service. In radio-frequency class B operation, a plate dissipation of 100 kilowatts may be tolerated. The cathode is a thoriated-tungsten filament. Maximum ratings apply up to 15 megacycles. At reduced ratings it may be operated up to 30 megacycles. |
 |
| TECHNICAL SPECIFICATIONS | |
| ELECTRICAL | |
| Filament Filament Voltage Filament Current |
Thoriated tungsten 17.5 volts 196 amperes |
| Amplification Factor | 27 |
| Transconductance | 50,000 μmhos |
| Direct Interelectrode Capacitances Grid-Plate Grid-Filament Plate-Filament |
86 μμf 116 μμf 3.4 μμf |
| MECHANICAL | |
| Mounting Position | Vertical, anode down |
| Cooling | Water / air flow to seals |
| Glass Temperature at Seals | max. 180 °C |
| Net weight (approx.) | 31 Pounds (14 kg) |
| Specifications may change without notice | |
| THIS TUBE IS USED IN THE FOLLOWING SHORTWAVE BROADCAST TRANSMITTERS | ||
| Manufacturer | Transmitter specifications | Power in kW |
| Philips | SOZ 182 | 100 |
